Functionally secure- certified – for small IT Locations

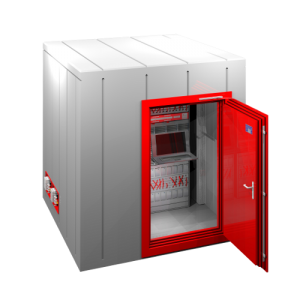

GranITe-MDC.cert is well-known & respected for its space-saving features, predestinating itself for smaller IT locations. Despite its compact layout, this Mini-Data-Center is no less effective than its larger counterparts when looking at security!
Installation is also possible during running operations for already existing IT-racks and that without having to shut down!
Product Details
- Modular system construction (wall, ceiling & floor elements)
- Elements made of steel, filled with highly-efficient insulating materials
- High-security door system with 6-point interlocking, monitoring contacts, mechanical key lock and sliding door closer
- Innovative round cable ducts DN200
- Innovative and patented „Click“ assembly method
- Independent of location
- (Re)movable during running operations
- Low static floor loads
Test Certificates
- ECB-S certification acc. to EN 1047-2
- Impact test acc. to EN 1047-2
- EI180 Building component test (outside) acc. to EN 1363-1 and EN 13501-2
- EI120 Building component test (inside) acc. to EN 1363-1 and EN 13501-2Certificate and test label Granite-MDC.cert
- Burglar protection RC 2 acc. to EN 1630
- Resistance to flying debris
- Dust protection IP 56 acc. to EN 60529
- Extinguishing water protection IP 56 acc. to EN 60529
- Protection against standing water
- Smoke tightness acc. to EN 1634-3
- Noise protection acc. to DIN 4109, DIN EN ISO 354, DIN EN ISO 140, DIN EN ISO 717
- Explosion protection
- Escape door certification acc. to EN 179 (optional EN 1125)
- EMP protection acc. to EN 50147
