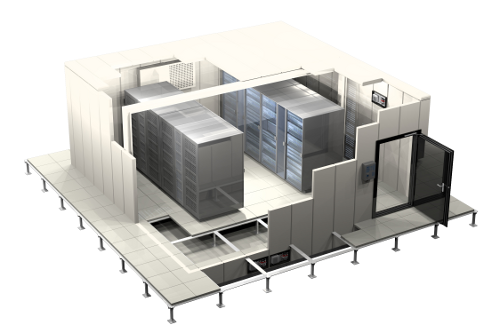

QuartzITe Room.sys 9.3 and 9.0
Modular – Customized – Secure
Product Details
- Wall and ceiling elements, floor elements as option
- Modular design
- Variable dimensions of height, width and length
- Modular control cabinet with energy-management system as option
- Pneumatic overpressure slide (only version 9.3)
- Electrical ventilation slide (only version 9.3)
- Fire damper for air conditioning (only version 9.0)
- IT security room door
Soft cable and tube ducts
Test certificates
- F90 system test acc. to DIN 4102 and EI 90 acc. to EN 1363 plus at least 30 mins. within admissable values of EN 1047-2 for temperature rise and relative humidity (only version 9.3)
- F90 system test acc. to DIN 4102 and EI 90 acc. to EN 1363 (only version 9.0)
- Smoke thightness following EN 1634-3 (DIN 18095) (only version 9.3)
- EMP protection
- Burglar protection RG 2 following EN 1627 / 1630
- Door in RG 3 as option
- Dust protection IP 5x acc. to EN 60529
- Protection against fire-fighting water IP x6 acc. to EN 60529
- Protection against stagnant water, 72 hours 40 cm, max. 20 drops
